2014 Honda FOURTRAX FOREMAN RUBICON

2014 Honda FOURTRAX FOREMAN RUBICON

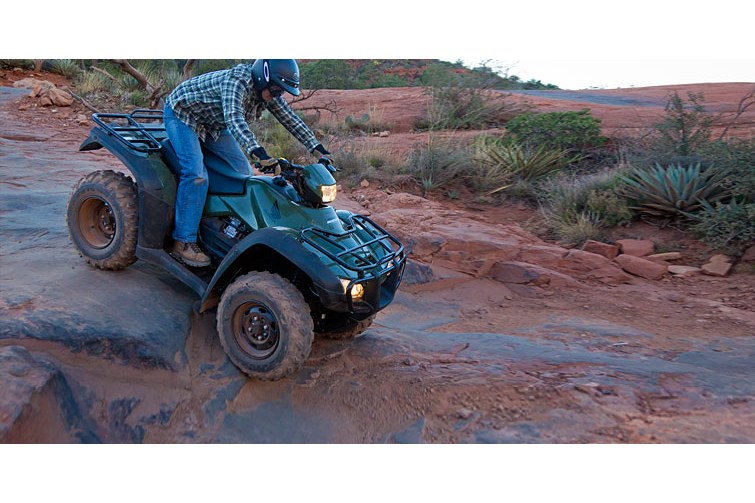

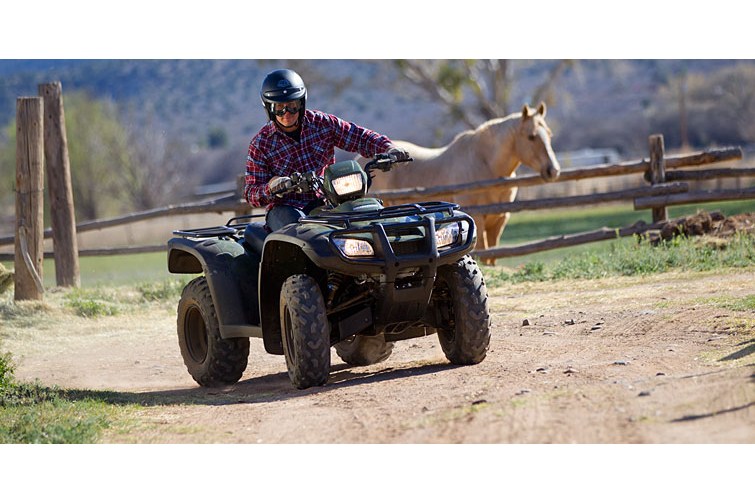

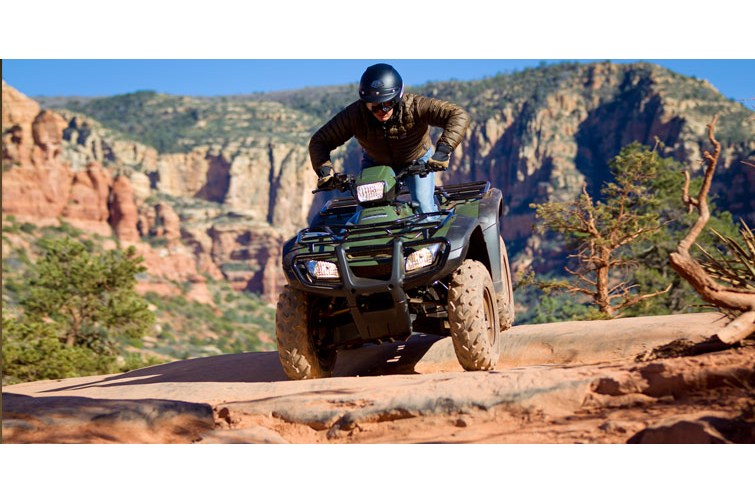

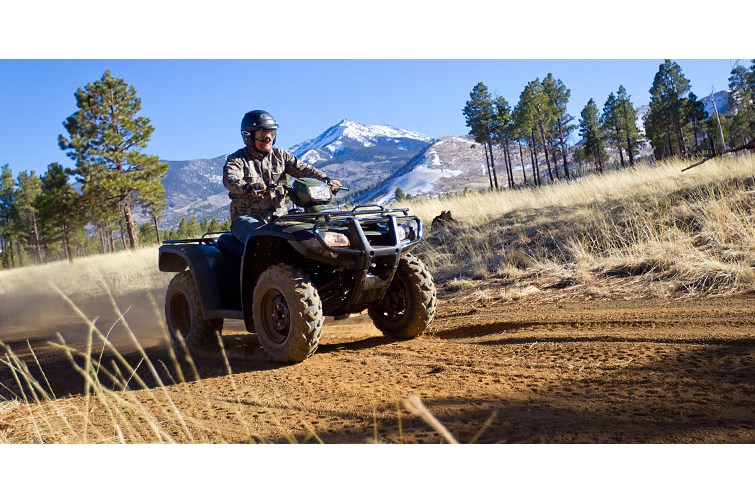

FourTrax Foreman Rubicon
Manufacturer: Honda
Condition: New

Description

If you're headed out for adventure on an ATV—or even if you've just got some tough chores to tackle—you need a machine that's strong enough to get the job done, but smart enough to make it all easy. And that's why we built the Honda FourTrax Foreman Rubicon. Strong? Its engine is a real powerhouse that delivers tons of torque. Smart? Its longitudinal layout and exclusive Hondamatic transmission makes smart use of that power and makes sure it all gets to the ground where it really matters. From the tightest mountain trails to the ranches and farms, the Honda FourTrax Foreman Rubicon has what it takes. And best of all, because it works with you, you'll never have to work overtime at the controls. Important Safety Information Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

  • Electric Power Steering.

    Electric Power Steering.

    Honda's Electric Power Steering (available on FPA model) features sophisticated torque sensors that measure how much force you're applying and then tailor how much extra assist you need. It makes your life way easier, especially when riding over ruts, rocks, logs, or on sidehills.

  • Hondamatic Transmission.

    Hondamatic Transmission.

    A continuously variable design, the Hondamatic is probably the smoothest automatic you'll ever ride. You get total control, a smooth ride, and plenty of power: a win-win-win situation!

  • Works Hard, Looks Good.

    Works Hard, Looks Good.

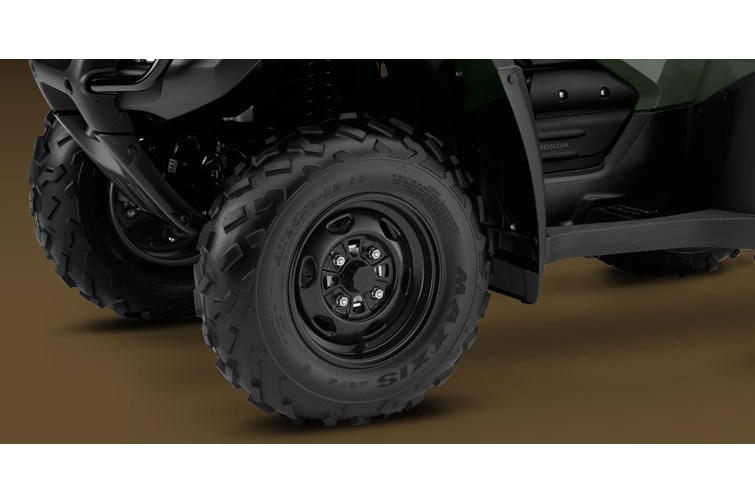

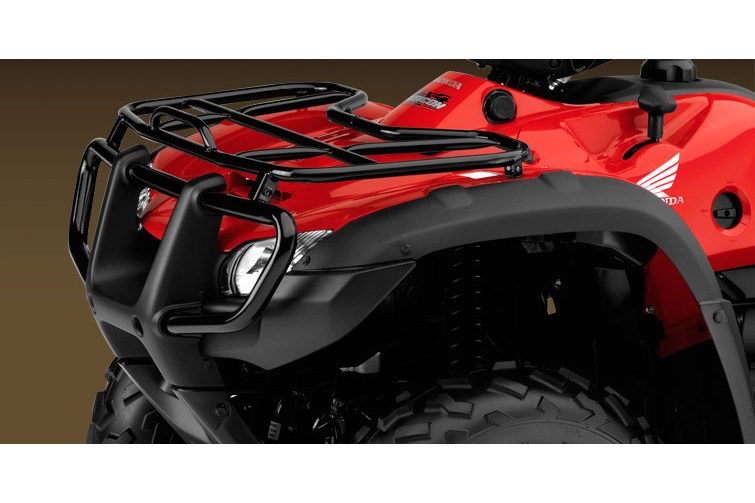

    Sure, the Rubicon is a hard worker, and has always had great styling. But we decided to change things up a bit. The first thing you'll notice is the blacked-out skid plate, grille, and brush guard. Then, take a look at the black wheels our Olive color gets for 2014. Change is good.

Specifications

ENGINE

Engine Type
499cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke
92mm x 75mm
Induction
36mm constant velocity carburetor
Ignition
CD with electronic advance
Starter
Electric with auxiliary recoil


DRIVE TRAIN

Available Colors
Automatic
Transmission
Fully automatic hydromechanical, continuously variable with electronic controls
Driveline
Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential


CHASSIS / SUSPENSION / BRAKES

Front Suspension
Independent double-wishbone; 6.7 inches travel
Rear Suspension
Swingarm with dual shock absorbers; 6.7 inches travel
Front Brakes
180mm front discs with single-piston calipers
Rear Brakes
Sealed mechanical drum
Front Tires
25 x 8-12
Front Tires
25 x 10-12


DIMENSIONS

Length
83 inches
Width
46.8 inches
Height
46.4 inches
Wheelbase
50.6 inches
Seat Height
33.9 inches
Ground Clearance
7.5 inches
Curb Weight
640 lbs. (includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity
4.0 gallons, including 0.7-gallon reserve
Towing Capacity
850 pounds


OTHER

Model Id
TRX500FA
Emissions
Meets current California Air Resources Board (CARB) off-road emissions standards.

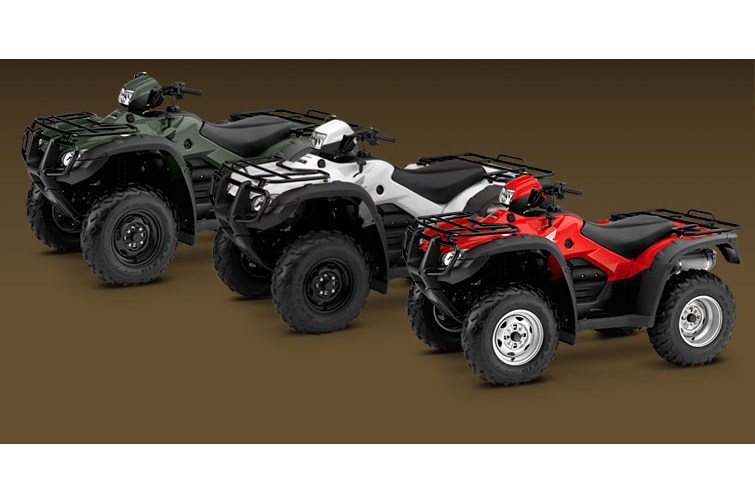

Available Colors
Red, Olive, White
Note
No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.


FACTORY WARRANTY INFORMATION

One Year
Transferable limited warranty; extended coverage available with a Honda Protection Plan.


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
