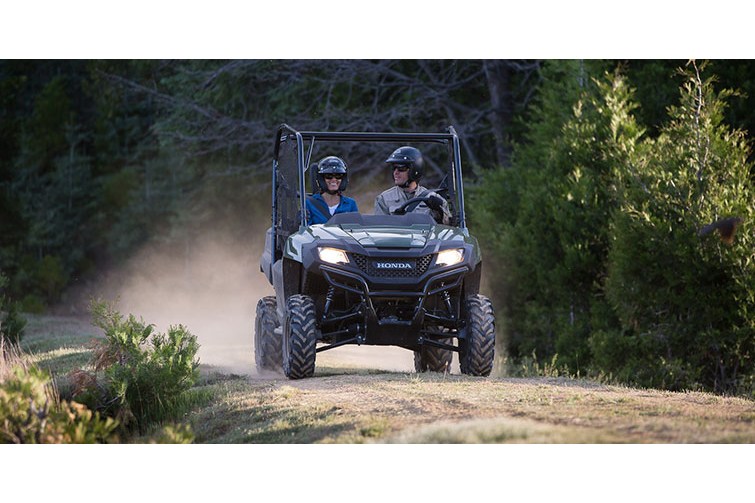

2014 Honda PIONEER 700

2014 Honda PIONEER 700
Olive
MSRP: $9,999.00
Manufacturer: Honda
Condition: New

Description

Honda’s all-new Pioneer™ 700. Full of Honda technology and features like a liquid-cooled 700-class engine, double wishbone front-suspension, and durable automotive-style automatic transmission with a heavy-duty torque converter, the Pioneer 700 comes with reliability and dependability nobody can touch. Best of all, it’s designed, developed, and expertly built in the U.S. (Pioneer 700 is built using locally and globally sourced parts.)

  • See All The Features

    See All The Features

    There's no better way to learn about all the great new features in the Pioneer 700 than watching them in action. Check out this short product video and share it with your friends!

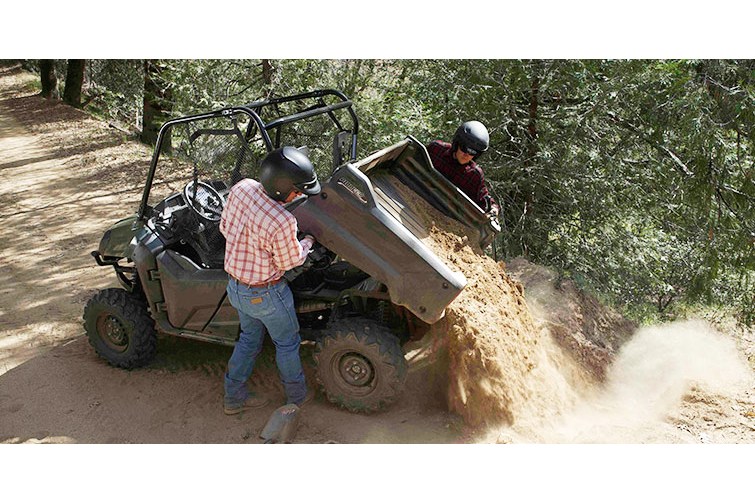

  • Tough, Strong Tilt Bed.

    Tough, Strong Tilt Bed.

    At Honda, we think the machine should do the work for you. That’s why we equipped the Pioneer 700 with a hydraulically-assisted tilt bed and a 1000-pound load capacity.

  • Honda Automatic Transmission.

    Honda Automatic Transmission.

    The Honda Automatic with its automotive-style torque converter is not only tough, it’s smart, too. A two-stage shift map optimizes power through the engine RPMs.

  • 675cc Liquid-Cooled PGM-FI Engine.

    675cc Liquid-Cooled PGM-FI Engine.

    The Pioneer 700’s torquey and powerful liquid-cooled, fuel-injected single-cylinder 675cc engine features an all-new intake design that helps minimize dust and particulate ingestion. It’s also rubber-mounted on a separate subframe to minimize vibration.

Specifications

ENGINE

Engine Type
675cc liquid-cooled OHV single-cylinder four-stroke
Bore And Stroke
102.0mm x 82.6mm
Compression Ratio
9.2:1
Induction
Fuel Injection (PGM-FI), 40mm throttle body
Ignition
Full-transistorized with electronic advance


DRIVE TRAIN

Clutch
Automatic
Transmission
Automotive-style with hydraulic torque converter, three forward gears and Reverse. Three drive modes include 2WD, 4WD and 4WD with differential lock
Driveline
Direct front and rear driveshafts


CHASSIS / SUSPENSION / BRAKES

Front Suspension
Independent double-wishbone; 7.9 inches travel
Rear Suspension
Independent double-wishbone; 9.1 inches travel
Front Brake
200mm hydraulic disc
Rear Brake
170mm hydraulic disc
Front Tires
25 x 8-12
Rear Tires
25 x 10-12


DIMENSIONS

Length
114.8 inches
Width
60.0 inches
Height
77.6 inches
Wheelbase
76.8 inches
Bed Capacity
1000 pounds

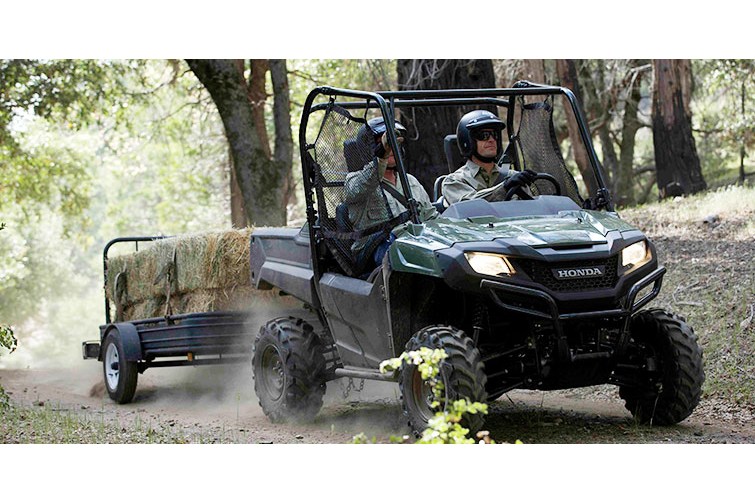

Towing Capacity
1500 pounds
Ground Clearance
10.3 inches
Turning Radius
14.8 feet
Curb Weight
1261 pounds - Includes all standard equipment, required fluids and full tank of fuel?ready to ride.
Fuel Capacity
8.2 gallons, including 1.2-gallon reserve


OTHER

Note
Recommended for Drivers 16 years of age and older.
Available Colors
Red, Olive, Honda Phantom Camo™
Model Id
SXS700M2


FACTORY WARRANTY INFORMATION

Duration
One Year
Description
Transferable limited warranty; extended coverage available with a Honda Protection Plan


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
